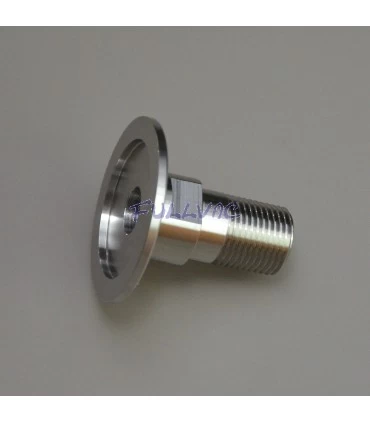

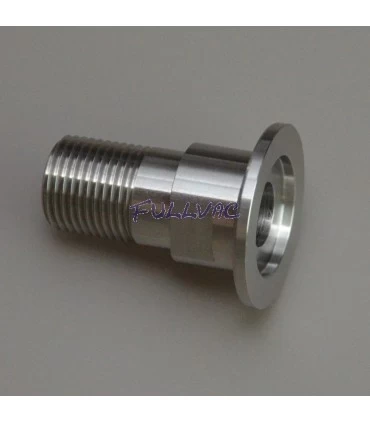

Adaptateur KF - NPT mâle
Adaptateur KF - NPT mâle en Inox 303 (1.4305)
Raccord NPT conique (standard américain)
|
Référence |
Bride | Raccord | A (mm) | B (mm) | C (mm) |
|
1KF16NM1/8 |
KF 16 | 1/8" - 27 NPT | 40 | 17 | 5 |
|
1KF16NM1/4 |
1/4" - 18 NPT | 40 | 22 | 7 | |
|
1KF25NM1/8 |
KF 25 | 1/8" - 27 NPT | 40 | 17 | 5 |
|
1KF25NM1/4 |
1/4" - 18 NPT | 40 | 22 | 7 | |
|
1KF25NM1/2 |
1/2" - 14 NPT | 50 | 30 | 14 | |
|
1KF25NM1 |
1" - 11 1/2 NPT | 60 | 32 | 25 | |
|
1KF40NM1/4 |
KF 40 | 1/4" - 18 NPT | 40 | 21 | 7 |
|
1KF40NM1/2 |
1/2" - 14 NPT | 50 | 30 | 14 | |
|
1KF40NM1 |
1" - 11 1/2 NPT | 60 | 33 | 25 | |
|
1KF40NM1.25 |
1 1/4" - 11 1/2 NPT | 50 | 31,5 | 32 | |
|
1KF40NM1.5 |
1 1/2" - 11 1/2 NPT | 50 | 28 | 32 | |
|
1KF40NM2 |
2" - 11 1/2 NPT | 50 | 27 | 40 |
